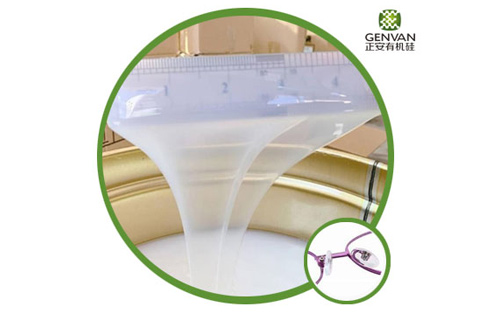

GA-22 series optical liquid silicone rubbers have excellent transparency, good mechanical properties, short curing time.
Features of Optical Liquid Silicone Rubber
- GA-22 Series Liquid Silicone Rubber
Optical LSR Feature: high transparency and strength
Optical Silicone Rubber Application: LED package, eyeglass holder, cup
Typical Characteristics
Product Code | GA-2230 | GA-2240 | GA-2250 | GA-2260 | GA-2270 |
Appearance | Transparent | ||||
Viscosity (Pa.s) | 100 | 100 | 80 | 50 | 50 |
Hardness (Shore A) | 30 | 40 | 50 | 60 | 70 |
Density (g/cm³) | 1.01 | 1.01 | 1.01 | 1.01 | 1.01 |
Tensile strength (Mpa) | 4.0 | 4.5 | 6.0 | 7.0 | 8.0 |
Elongation (%) | 150 | 170 | 220 | 150 | 80 |
Tear strength (N N/m) | 12 | 14 | 20 | 18 | 10 |
Linear shrinkage (%) | 2.1 | 2.1 | 2.1 | 2.0 | 2.0 |
-
