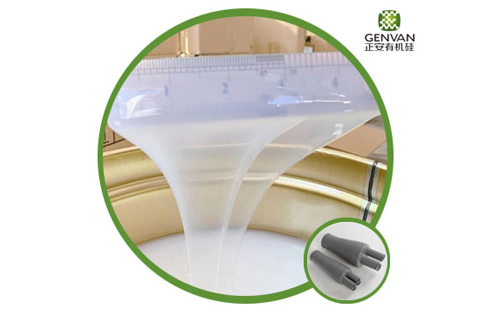

Liquid Silicone Rubber For Cable Accessories

GA-2040 series is the liquid silicone rubber for power engineering, which has excellent mechanical and electric properties.

Contact us

Features of Liquid Silicone Rubber For Cable Accessories

  • GA-2040 Series Liquid Silicone Rubber

Feature: Injection molding, Excellent physical mechanical property, Fast curing, Resistance to UV and ozone, Excellent electricity property

Application: Cable accessories, Cable termination, Cold shrink product

Typical characteristics

Product

GA-2040-35

GA-2040-35T

Appearance

A: Transparent

B: Grey

A: Transparent

B: Transparent

Viscosity A/B (mPa.s)

(80-300)*104

(80-300)*104

Hardness(ShoreA)

35-40

35-40

Density(g/cm³)

1.11

1.11

Tensile strength(Mpa)

9

9

Elongation(%)

800

800

Tear strength(KN/m)

25

25

Permanent deformation at constant extension 120℃*15H*300%(%)

5

5

Dielectric constant 100HZ

3.03

3.03

Dissipaiton factor at 100HZ

0.0029

0.0029

Resistance to leakage electric and marking

1A3.5

1A3.5

Disruptive strength(KV/mm)

24

24

Volume Resistivity(Ohm.cm)

1.0*1015

1.0*1015
