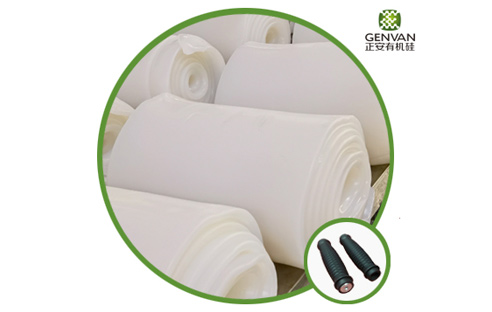

GA-99*1 series set silicone has low compression deformation, high resilience properties. Product contact with food needs to do the two-process treatment at 200℃ 4hours.
GA-99*0 series set rubber has low compression deformation, good heat resistance properties. Product contact with food needs to do the two-process treatment at 200℃ 4hours.
High resilience
Low compression deformation

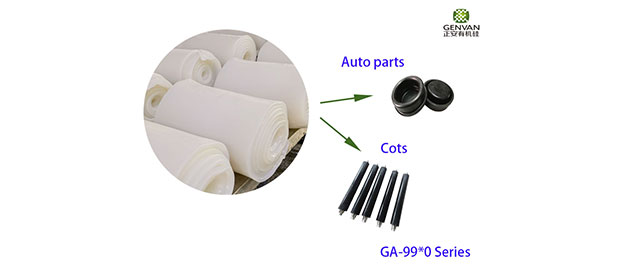

Application: Rubber roller, Automobile accessories, Sealing
| Product code | GA-9931 | GA-9941 | GA-9951 | GA-9961 | GA-9971 |
| Appearance | Transparent | ||||
| William plasticity | 120 | 140 | 160 | 180 | 210 |
| Hardness(ShoreA) | 30 | 40 | 50 | 60 | 70 |
| Density(g/cm³) | 1.10 | 1.11 | 1.12 | 1.13 | 1.15 |
| Tensile strength(Mpa) | 6.0 | 6.0 | 6.0 | 6.0 | 6.5 |
| Elongation(%) | 700% | 600% | 250% | 200% | 150% |
| Tear strength(KN/m) | 15 | 15 | 15 | 15 | 15 |
| 175*22h Compression(%) | 10% | 10% | 8% | 8% | 10% |
Product code | GA-9920 | GA-9930 | GA-9950 | GA-9960 | GA-9970 |
Apperance | Faint yellow | Transparent | |||
William plasticity(ShoreA) | 100 | 120 | 190 | 220 | 270 |
Hardness (ShoreA) | 21 | 30 | 50 | 60 | 70 |
Density(g/cm³) | 1.05 | 1.11 | 1.13 | 1.15 | 1.17 |
Tensile strength(Mpa) | 5.0 | 7.0 | 8.0 | 9.0 | 9.0 |
Elongation(%) | 800 | 500 | 400 | 350 | 250 |
Tear strength(KN/m) | 10 | 15 | 20 | 20 | 20 |
175*22h compression(%) | 13 | 12 | 15 | 15 | 15 |
